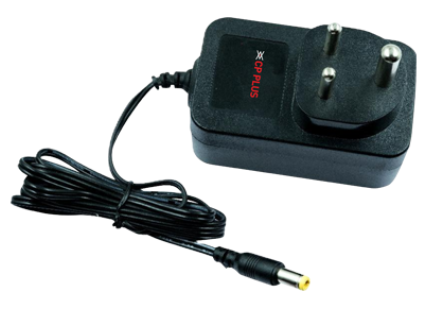

CP Plus-YPS-PA36B-12DN 12V 3Amp-3 Pin Power Adapter -

Output	Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Output Power: 36W
Input Voltage Range	100-285V AC
Rated Frequency	50/60Hz Variation Frequency : 47 – 63Hz
Rated Input Voltage	140-240V AC
Input Current	0.8A Max.@ Any input AC voltage & output full load
Combined Load/ Line Regulation	Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 3A, Line Regulation: ± 5%, Load Regulation: ±5%
Turn on Delay Time	3S Max. @ 115V AC input and output Max. Load
Hold Up Time	10mS Min. @ 115V AC input and output Max. Load
Fall Time	50mS @ Max. Load
Surge Immunity	2kV L-N
Hi-Pot Test	3kV@ 10mA
Output voltage	11.4V-12.6V
No Load Power Consumption	<0.3W
OCP Power	3.6A min @ 230VAC
Certificates	ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS
Overshoot	10% Max. When power supply @ turns on or turn off
Operating Temperature	0°C to 40°C (Full load, Normal Operation)
Storage Temperature	-40°C to 85°C
