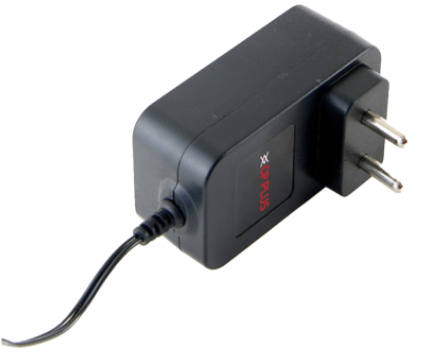

CP Plus-YPS-PA24B-12DT 12V 2Amp-2 Pin Power Adapter -

Output	Voltage: 12VDC, Range: 11.40 -12.60V, Min. Load: 0.1A, Rated Load: 2A, Output Power: 24W
Input Voltage Range	110-265VAC
Rated Frequency	50/60Hz Variation Frequency : 47 – 63Hz
Rated Input Voltage	140-240VAC
Input Current	0.75A Max.
Combined Load/ Line Regulation	Voltage: 12VDC, Min. Load: 0.1A, Rated Load: 2A, Line Regulation: ± 5%, Load Regulation: ± 5%
Ripple and Noise	250mVp-p; Under normal voltage & nominal load
Turn on Delay Time	3S Max. @ 115V AC input and output Max. Load
Rise Time	100mS Max. @ 115V AC input and output Max. Load
Hold Up Time	8mS Min. @ 115V AC input and output Max. Load
Fall Time	50mS @ Max. Load
Surge Immunity	2kV L-N
Hi-Pot Test	2kV@ 10mA
Output voltage	11.4V – 12.6V
No Load Power Consumption	<0.3W
OCP Power	2.2A min @ 230VAC
Efficiency	Average efficiency 75% minimum @ 25%, 50%, 75% & 100% of full-loading and 230V AC input (After warm up 30 minutes)
Certificates	ISO 9001: 2015, ISO 20000-1: 2018, ISO 14001: 2015, ISO 45001: 2018, ISO 50001: 2018, CE, FCC and RoHS, BIS
Overshoot	10% Max. When power supply @ turns on or turn off
Operating Temperature	0°C to 40°C (Full load, Normal Operation)
Storage Temperature	-40°C to 70°C
